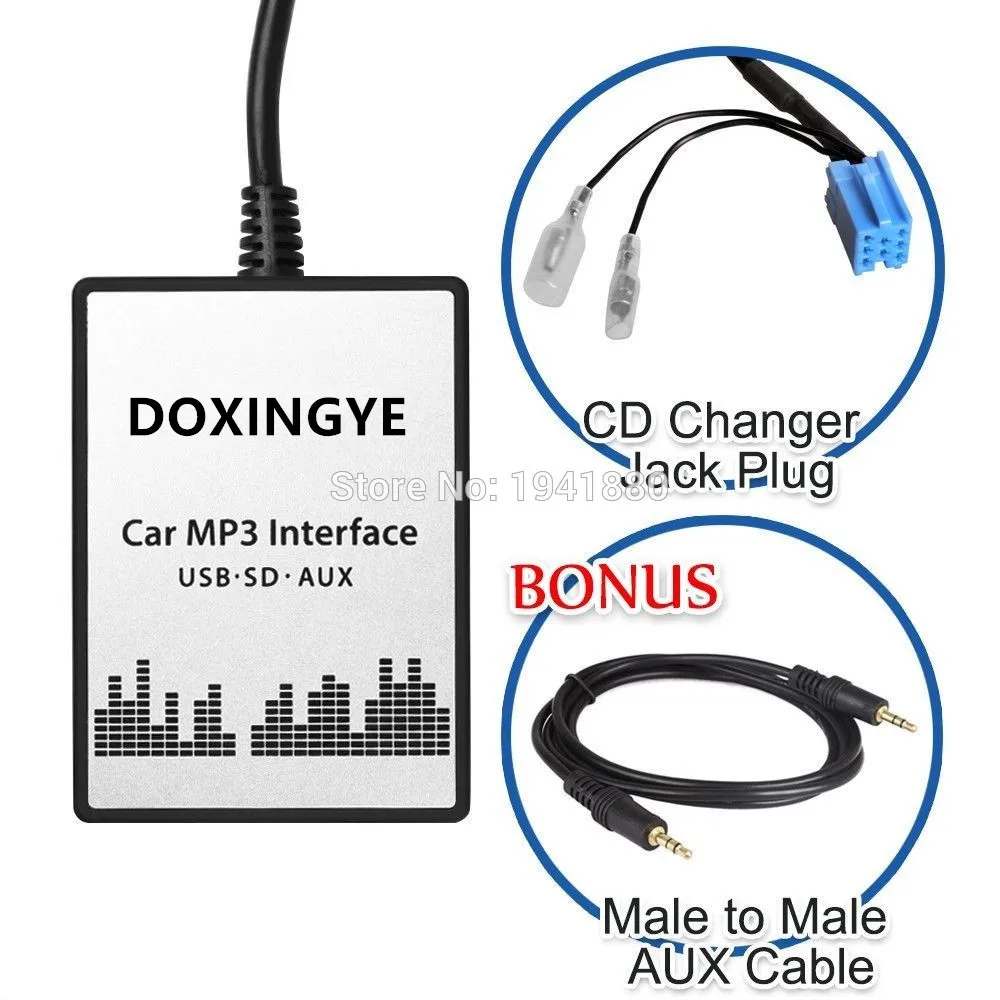

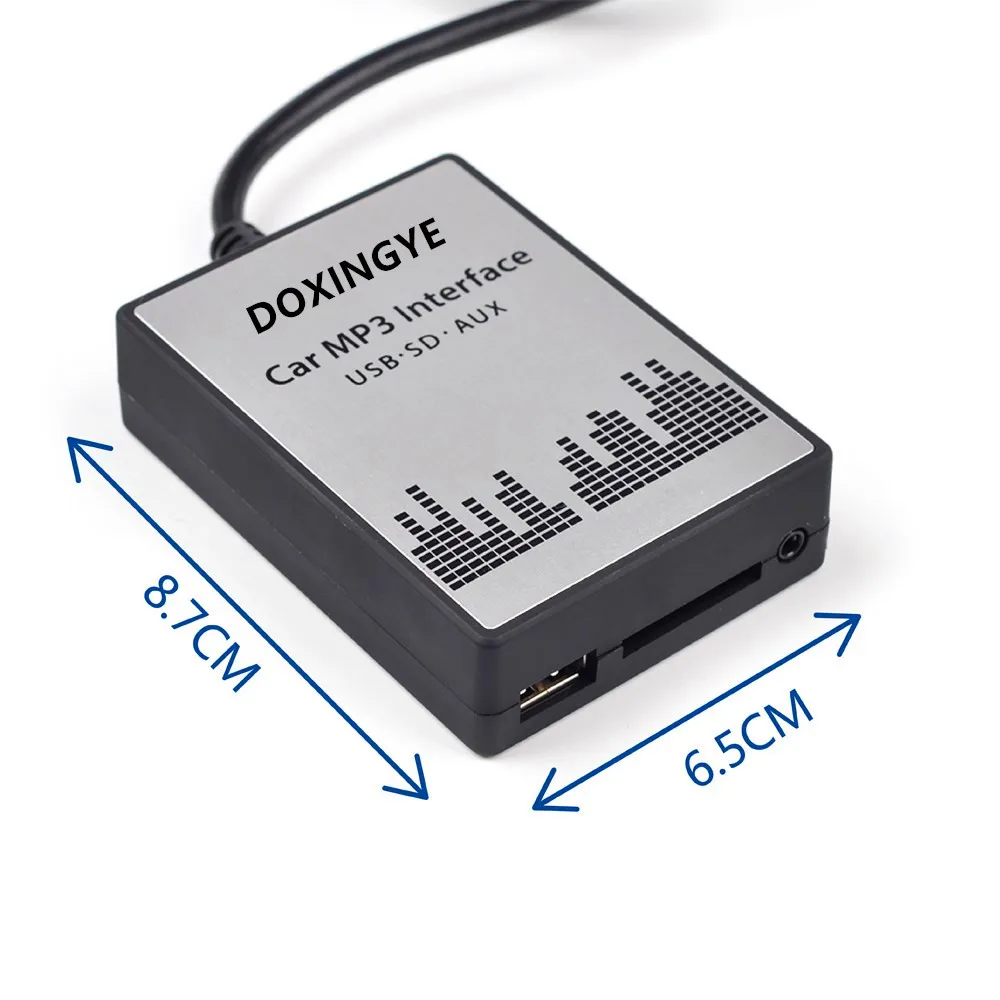

DOXINGYE,USB SD AUX Car MP3 Music CD Changer Adapte For Renault 8pin Clio Avantime Master Modus Dayton Interface
Car MP3 Interface (CMI) is an digital virtual CD changer , which can be easily installed and used. It is deliver CD quality music directly into car stereo system via CD changer port. CMI support direct controls from car radio panel and steering wheel. It support SD/SHSD/MMC card and Usb stick play via build-in USB slot and SD card slot. Aux port support universal aux audio line in.
Item type: Cables, adapters & sockets
Voltage input: DC 12V
Max. Current: 600mA
Frequency response: 20HZ-20KHZ
Working temperature: -10-80 Celsius degree
Total Harmonic Distortion: 0.01%
Cable length: 80CM
Package size: 15 * 10 * 4cm
Package weight: Approx. 180g
- 1.Direct Connection via CD changer Port with CD quality sound.
- 2. Control music files from your car radio panel or steering wheel.
- 3.Support USB Flash, SD Card and 3.5mm jack input.
- 4.Building in high quality MP3/WMA decoder.
- 5.Building in Amplifier chips.
- 6.No signal interfere, No battery required.
- 7.Smart design and Easy to install and use.
- 1. Turn off car engine and remove key from ignition
- 2. Remove car radio from the dash in order to get assess to the back of radio
- 3. Find CD Changer port and plug Car Mp3 Interface cable connector into it, make sure firm connection.
- 4. Plug USB stick or SD card into Car Mp3 Interface. Turn on radio and press CD (Disc/model/CDC/AUX) button until "CD-X-X" appear on radio screen. And play music to check left and right sound. And test if can control radio track +/-,Disk +/-.
- 5. After all test are ok, assembly radio and put Car MP3 Interface in the proper place.
Car Compatible with:
（ it is 8PIN interface)
NOTE :Please carefully check the product of compatible with the range, and then buy the product.
If you can not determine whether your car is compatible. Please contact our customer service.
If your car does not fit the above compatibility, please do not buy. Otherwise it will not work.

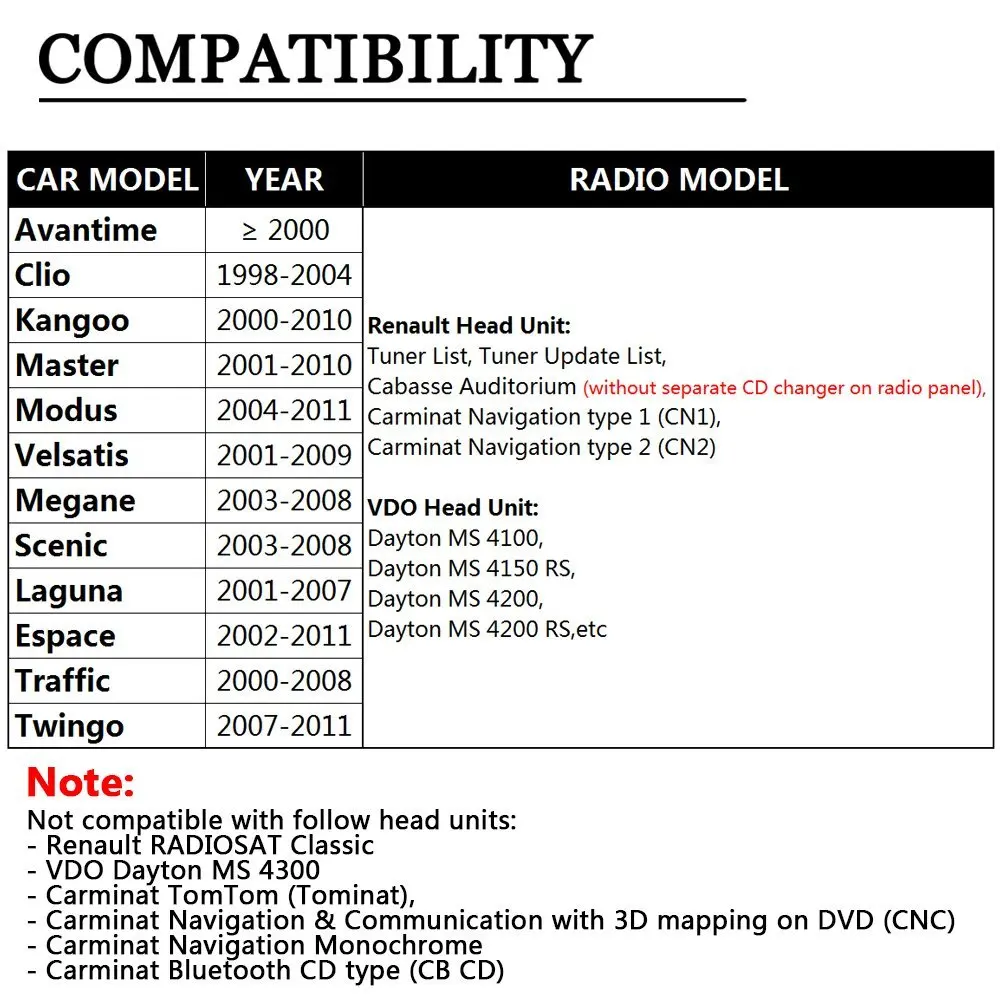

FOR Renault 8pin:
2000 Avantime, 1998 - 2004 Clio, 2000 - 2010 Kangoo, 2001-2010 Master, 2004-2011 Modus, 2001-2009 Velsatis, 2003 - 2008 Megane, 2003 - 2008 Scenic, 2001 - 2007 Laguna , 2002 - 2011 Espace , 2000 - 2008 Traffic , 2007 - 2011 Twingo
Compatible Radio HeadUnit:
Renault:Tuner List, Tuner Update List, Cabasse Auditorium(without separate CD changer on radio panel), Carminat Navigation type 1(CN1), Carminat Navigation type 2(CN2),
VDO:Dayton MS 4100, Dayton MS 4150 RS, Dayton MS 4200, Dayton MS 4200 RS, etc
Not Work with:
1.Renault RADIOSAT Classic ,VDO Dayton MS 4300, Carminat TomTom (Tominat)
2.Carminat Navigation &Communication with 3D mapping on DVD (CNC)
3.Carminat Navigation Monochrome, Carminat Bluetooth CD type (CB CD)
Notice:1. Requires unplugging car head unit before installing Digital music changer
Supported memory cards and USB sticks:
- 1. Max 8GB (2GB is most recommended);SD card is more recommended than USB stick.
- 2. Imposed folder naming system: CD01, CD02, CD03 ....
- 3. Using music files formats other than WMA and MP3 may also cause intermittent performance.
- 4. Please format USB stick or SD card with FAT16 or FAT32 format before you save files and folders in USB/SD.
- Doesn't read sub-folder and gets confused with other names in root of the drive.
- 5. Supports up to 15 folders (depending on the radio type) on your USB/SD.
- 6. Any number of songs can be stored in each folder, but the display of most radio models can only screen 99 track titles; Saving too big file(over 50MB) in any folder may also cause intermittent performance
- 7. The playback order of songs is in line with their created date.
- 8. Sometimes,to remove defect on software of car audio system, you may need to disconnect the battery or remove the fuse to reset the car audio system.
- 9. To use the Aux-In port, it's necessary to remove the USB or SD card.
- 10. This device may does not work with some of new Kingston brand USB stick.
1 x CMI box

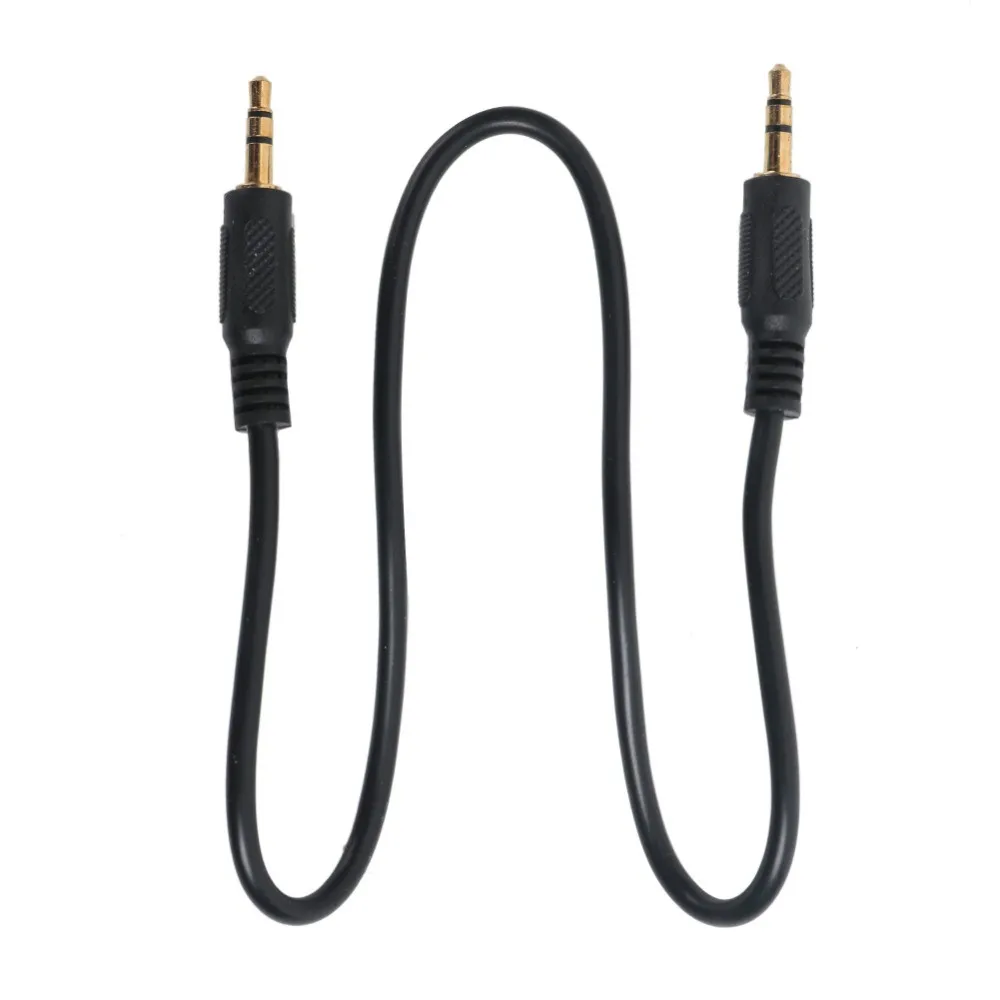

1 x Aux extension cable
1 x Manual
